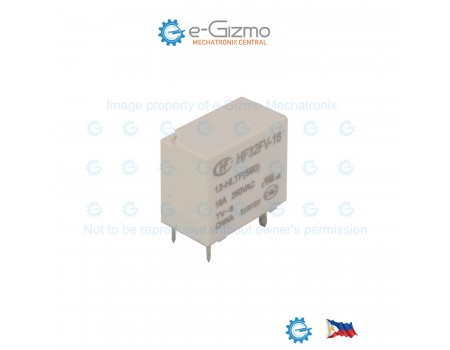

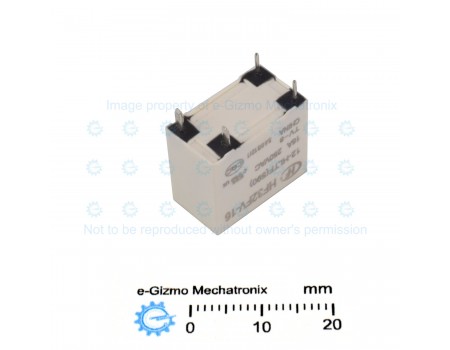

HengFu HF32FV-16/12-HLTF SPST 12V 16A TV-8 Miniature Power Relay

Name: HengFu HF32FV-16/12-HLTF SPST 12V 16A TV-8 Miniature Power Relay
Brand: HengFu
Price: 29.00 PHP
Availability: InStock

HengFu HF32FV-16/12-HLTF SPST 12V 16A TV-8 Miniature Power Relay

0 reviews - Write a review

₱29.00

Stock: In Stock
Brand: HengFu
Product Code: 130800039
Product ID: 130800039

HengFu

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: relay

Description
Reviews

Genuine HengFu Relay, 12V 16A with UL, CUL, CQC safety qualifications.
TV-8 Rated at 5 million operations
Gold Plated relay contacts for long life.

Contact Material: AgSnO2
Contact Rating: 16A
Contact Resistance: 100mR max.
Contact Voltage: 250VAC
Contact Switching Power: 4000VA
Mechanical Endurance: 5 million operations

Coil Voltage: 12VDC Nominal, 13.2V max.
Coil Pickup Voltage: 9V max.
Coil Release Voltage: 1.2V min.
Coil Resistance: 180R +/-10%
Safety Approval: UL, CUL, CQC

Weight: 3g
