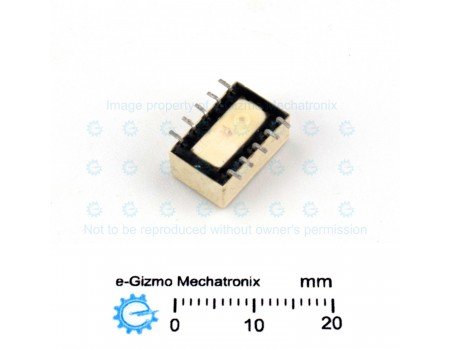

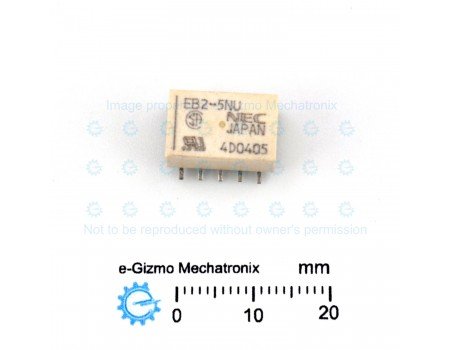

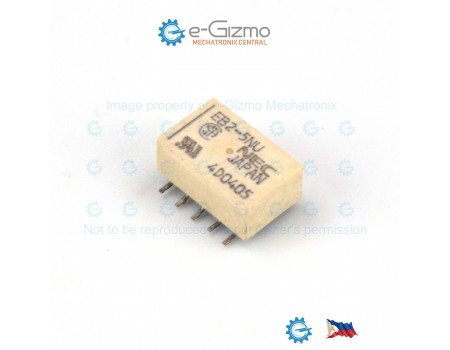

NEC EB2-5NU 5V 2A DPDT Compact SMD Relay UL,CSA

NEC EB2-5NU SMD Relay.
5V Coil Voltage, High DC Voltage (220V) contact rating
>100million operations at no load
Made in Japan

Contact Rating:
Maximum Switching Power: 62.5VA
Maximum Switching Voltage: 220VDC/250VAC
Maximum Switching Current: 1A
Maximum Carrying Current: 2A
Intial Contact Resistance: 0.05R
Contact Material: Silver Alloy with Gold Alloy overlay
Operate Time: 2ms
Release Time: 1ms
Running Specifications: >1million operations @ 0.1A load

Coil Specifications
Nominal Coil Voltage: 5VDC
Must Operate Voltage: 3.75V
Must Release Voltage: 0.5V
Coil Resistance: 178 ohms

Safety Listing: UL, CSA
