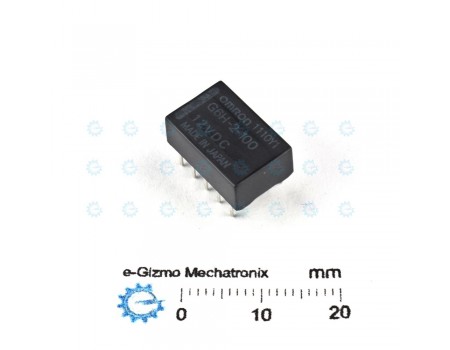

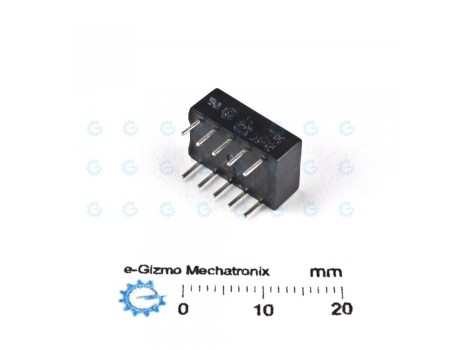

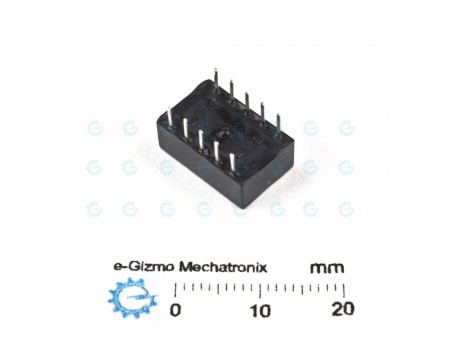

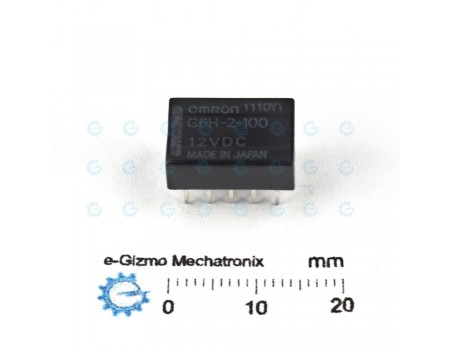

Omron G6H-2-100 Ultra Sensitive Compact DPDT Relay 12V DIP

Name: Omron G6H-2-100 Ultra Sensitive Compact DPDT Relay 12V DIP
Brand: OMRON
Price: 60.00 PHP
Availability: InStock

Omron G6H-2-100 Ultra Sensitive Compact DPDT Relay 12V DIP

0 reviews - Write a review

₱60.00

Stock: In Stock
Brand: OMRON
Product Code: 77008486
Product ID: 77008486

OMRON

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: relay

Description
Reviews

Genuine OMRON Relay, Made in Japan

Coil Data
Nominal Voltage: 12VDC
Rated Current: 11.7mA
Coil Resistance: 1.028K
Pickup Voltage: 9VDC
Dropout Voltage: 1.2V

Contact Data:
Rated Load: 0.5A @ 125VAC, 1A @ 30VDC
Contact Material: Ag (Au clad)
Max switching load: 62.5VA, 33W
Operate time: 3ms max
Release time: 2ms max
Operating Frequency: 1,800 operations/hr under rated load
Service life: 100 million operations (mechanical)
