NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA

NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
NEC EA2-4.5NU 4.5V 2A DPDT Compact DIP Relay UL,CSA
0 reviews - Write a review
₱35.00
  • Stock: In Stock
  • Brand: NEC
  • Product Code: 580011011
  • Product ID: 580011011
NEC
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: relay

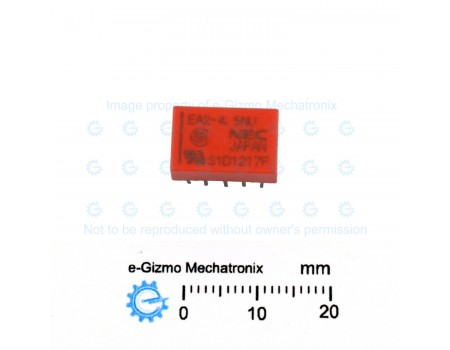

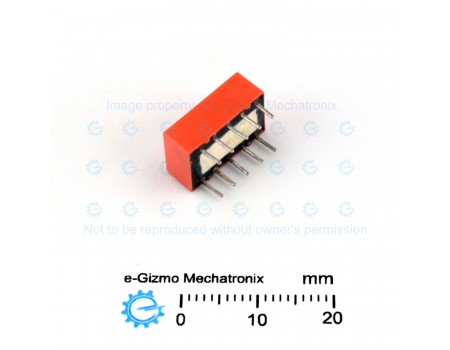

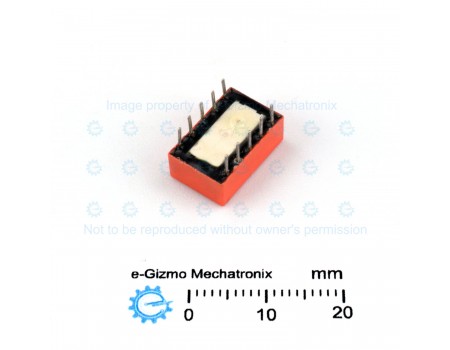

NEC EA2-4.5NU DIP Relay.
4.5V Coil Voltage, High DC Voltage (220V) contact rating
>100million operations at no load
Made in Japan

Contact Rating:
Maximum Switching Power: 62.5VA
Maximum Switching Voltage: 220VDC/250VAC
Maximum Switching Current: 1A
Maximum Carrying Current: 2A
Intial Contact Resistance: 0.05R
Contact Material: Silver Alloy with Gold Alloy overlay
Operate Time: 2ms
Release Time: 1ms
Running Specifications: >1million operations @ 0.1A load

Coil Specifications
Nominal Coil Voltage: 4.5VDC
Must Operate Voltage: 3.38V
Must Release Voltage: 0.45V
Coil Resistance: 145 ohms

Safety Listing: UL, CSA
