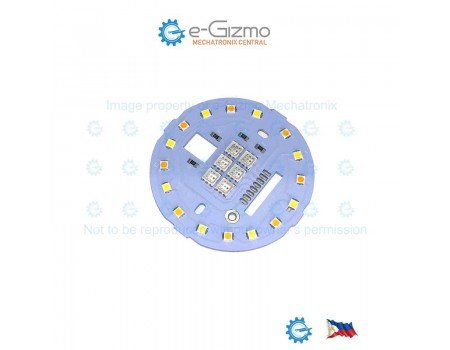

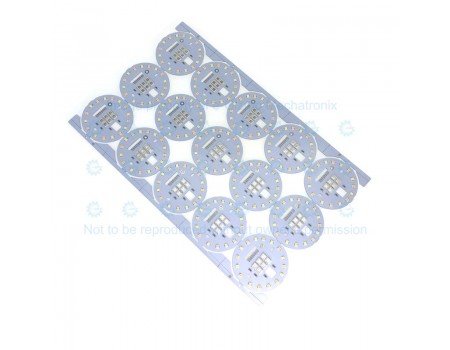

DIY Daylight + Warmwhite + RGB LED Module on 60mm Aluminum Substrate

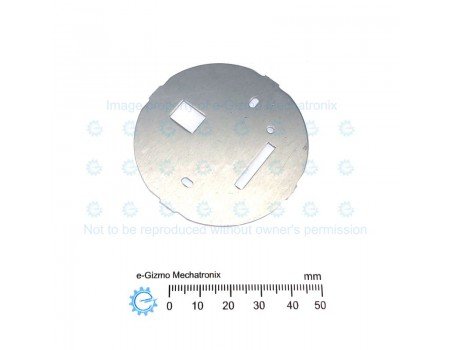

This product is a DIY LED module with all the mood colors you will ever want. The LEDs are bonded on an aluminum PWB for heatsinking. You can operate the LEDs at slightly higher wattage if you mount it on an external heatsink.

For best results, a constant current driver should be used in powering the main LEDs. e-Gizmo LED Driver module is ideally suited for this purpose when used in DC powered (e.g. Solar) applications.

A. Typical Forward Voltage @ 100mA Current

Daylight: 23V
Warm White: 23V
RGB Red: 5.96
RGB Blue: 9.6V
RGB Green: 8.2V

Recommended maximum drive current:

Day Light: 150mA C+ and C-
Warm White: 150mA W+ & W-

RGB LEDs: 100mA

Tip: Daylight and Warm White can be driven at the same time, either in series or parallel connection, if you want a light mood in between the two.

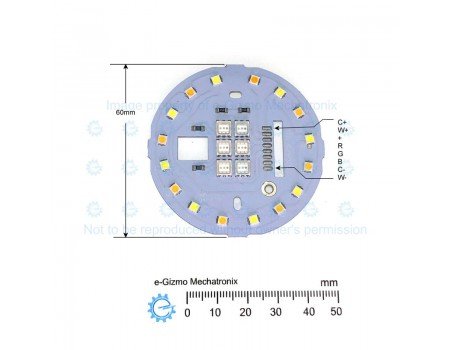

Pin out:
C+ Daylight (+)
C- Daylight (-)
W+ Warm white (+)
W- Warm white (-)

+ RGB Common (+)
R Red (-)
G Green (-)
B Blue (-)
