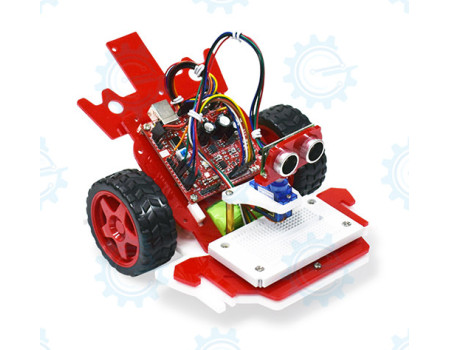

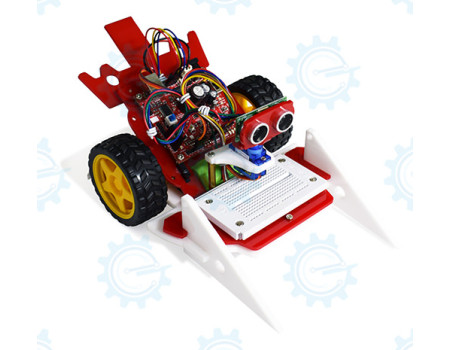

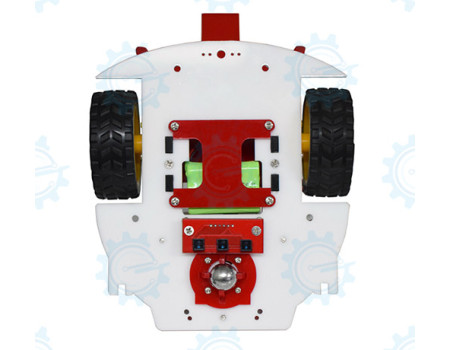

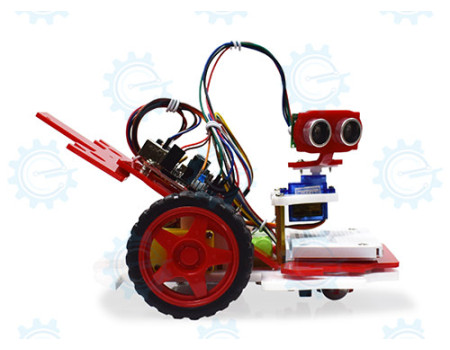

PBOT Jr. Standard

Ship in 1-3 days

PBOT Jr. Standard

0 reviews - Write a review

₱2,951.50

Stock: Ship in 1-3 days
Product Code: 77009880
Product ID: 77009880

Qty

Ship in 1-3 days

Buy Now

Add to Wish List Compare this Product

Description
Reviews

Basic Programmable Mobile Robot with Breadboard.
- Open circuit design for easy module interfacing
- Arduino / gizDuino Compatible Shield Port
- In-Circuit programming & Charging
-Dual Full-Bridge PWM Motor Driver
- Program with Arduino IDE or ArduBlock Graphical Programming

Base Specifications:
Microcontroller: ATMEGA168 16K program Memory
Power Source: Rechargable Ni-MH Battery (included)
USB Bridge: PL2303D
Charging Input Voltage: 9V-10VDC
Sensors: Ultrasonic Distance Sensor & 3-Channel Line Sensors

Demo Video :

Features :

Open circuit design for easy module interfacing

Arduino / gizDuino Compatible Shield Port

In-Circuit programming & Charging

Dual Full-Bridge PWM Motor Driver

Available in many variants and with Editable Sample Codes/Sketch:
Bluetooth Controlled w/ free Android App
PS2 Controlled with Robotic Arm
Maze Solver / Obstacle Avoidance
SumoBot(Aggressive Bot)

Specifications :

Power Input	7-9VDC
Charger Input	9-10VDC
On-Board peripherals	2CH-PWM Motor Driver 6V 1.5A 3-Ch Line Tracker Sensor 10mm range
PCB Dimension (PBOT Jr. Board)	62x67mm
Physical Dimensions	Weight: Standard = 0.558kg BT Controlled = 0.566kg PS2 Controlled w/ e-GRA = 0.613kg Chassis Only = 0.362kg Height / Vertical Clearance: Standard = 10.5cm BT Controlled = 10.5cm PS2 Controlled w/ e-GRA = 21.5cm Chassis Only = 10.5cm

Downloads :

Technical Manual	Download
Assembly Manual (Standard)	Download
Assembly Manual (Chassis)	Download
Sample Arduino/gizDuino Sketches	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
