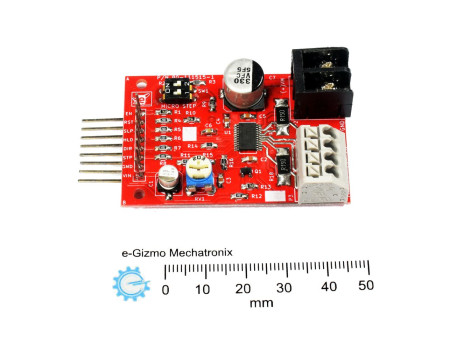

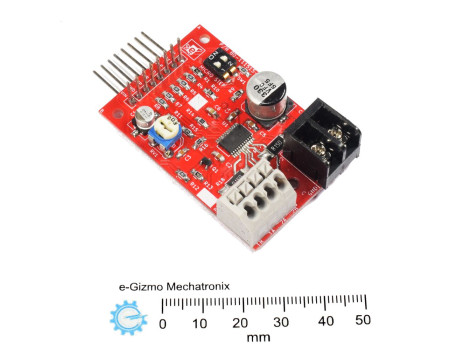

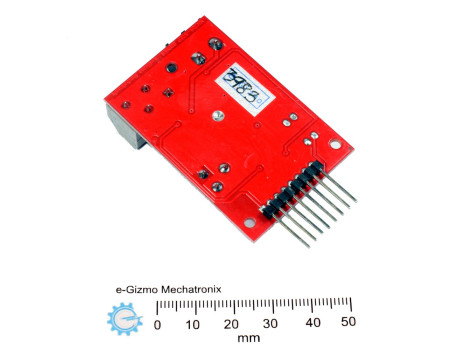

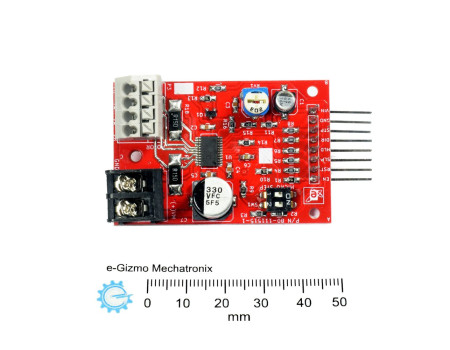

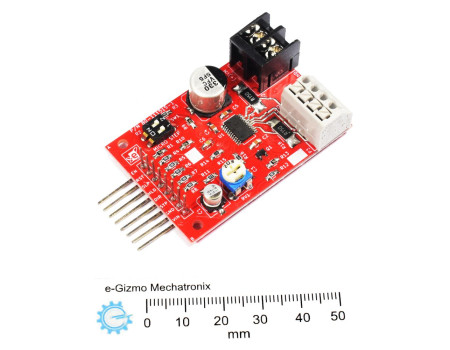

A complete microstepping motor driver with built-in translator for easy operation. It is based on 3 different variants of A3983,A3984 and A4984 IC. Designed to operate bipolar stepper motors in full-half, quarter and eight-step modes.
e-Gizmo Microstep Driver is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened. A complete microstepping motor driver with built-in translator for easy operation is based on 3 different variants of A3983, A3984, and A4984 IC. It is designed to operate bipolar stepper motors in full-half, quarter and eight-step modes with output drive capacity of up tp 35V and 2A.
Features :
- Automatic current decay mode detecttion/selection.
- Cross-over current protection.
- Thermal shutdown circuitry
- Compatible to all gizDuino boards.
Wiring :
- Connection to gizDuino SE.
Specifications :
| Input Supply: | up to 12VDC |
| Maximum current: | 2A |
| Packages: | 24-pin TSSOP with exposed thermal pad (LP Package) |
| On-board IC: | A3983,A3984,A4984 |
| PCB Dimension: | 37mm x 56mm |
Downloads :
| Microstep Technical Manual |
Downloads |
| microstep sample codes |
Downloads |
