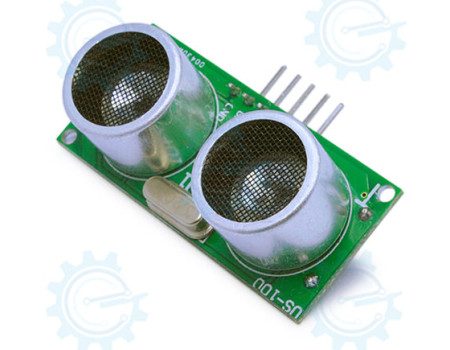

ROBOT SENSING: US-100 Ultrasonic Sonar Sensor

ROBOT SENSING: US-100 Ultrasonic Sonar Sensor
Retired
ROBOT SENSING: US-100 Ultrasonic Sonar Sensor
0 reviews - Write a review
₱258.00
  • Stock: Retired
  • Product Code: 580011603
  • Product ID: 580011603
Retired
Buy Now
Add to Wish List Compare this Product

Low cost compact ultrasonic sonar (distance measuring) sensor with up to 3.5-meters range. A host microcontroller circuit determines distance by triggering the US-100 and then measuring the echo time indicated by the pulse width output of the sensor. Temperature compensatured for accurate ranging even on varying ambient temperatures.




Specifications :
Power Input
 3 ~ 5VDC
Technology
 40kHz Ultrasonic Sonar
Trigger Input & Echo Output TTL
Sensor Range
 2 ~ 350cm ( Temperature Compensated )
PCB Dimensions
 20x45mm


Downloads :
Technical Manual
 Download
Sample Arduino / gizDuino Sketch
 Download
