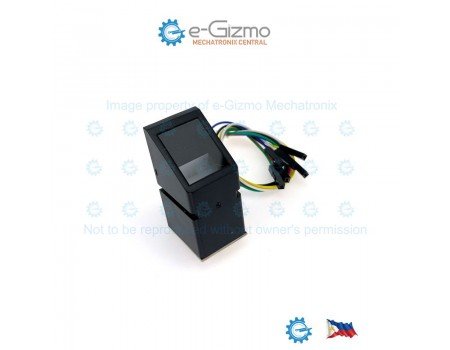

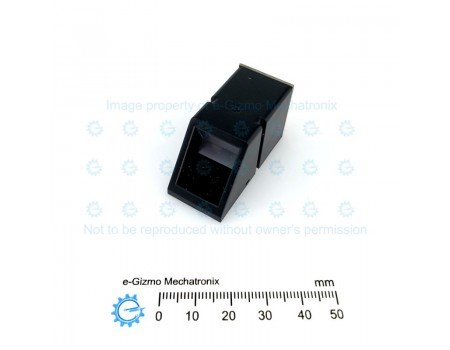

AS608 3.3V Fingerprint Scanner Reader

AS608 Optical Fingerprint Sensor
Adafruit Library compatible

Note: This module will work only with 3.3V Supply and Logic Levels. It is level compatible with Rapberry Pi and most ARM based controllers. If you want to use this with 5V host controllers, level converter must be used on the TX and RX pin.

Permanent damage may occur if powered with 5V supply.

Supply voltage: DC 3.3V
Supply Current: Current: <60mA
Peak current: <60mA
Fingerprint image time: <1.0 seconds
Window size: 15.3x18.2mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Communication Interface: USB & UART
