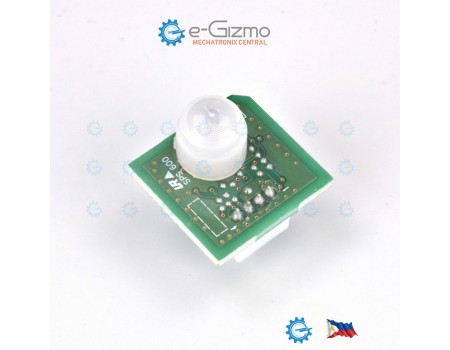

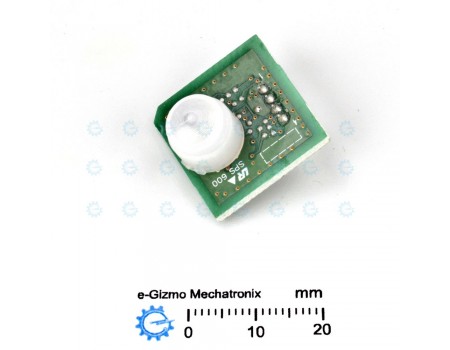

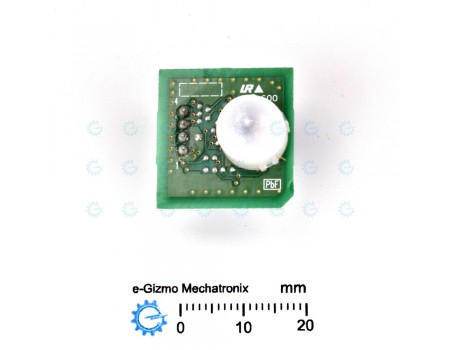

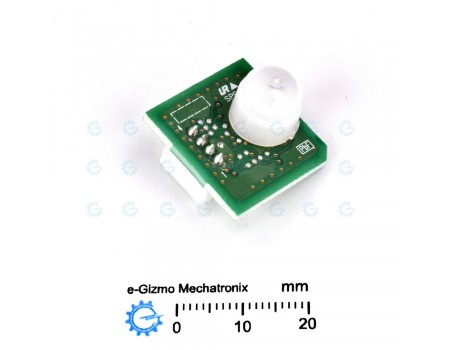

Small Size PIR motion sensor module Analog + Digital Output SPS

This product is a commercial quality single channel PIR motion sensor with a Narrow Angle coverage and an analog and digital output.

Operation Voltage: 3.3V to 5VDC
Detection Range*: >6 meters
Recommended Mounting: Horizontal (PCB Vertical)

Sensitivity Adjustment: None
I/O Connector: 4 pin Wafer Type 2mm pitch
Digital Output: Vcc Level Logic, compatible with both Arduino (5V) and Raspberry Pi (3.3V)

Important: PIR sensors require up to a minute of power ON setup time before they start to work.

*Detection distance depends on several environmental factors. Generally, distance is reduced when the ambient temperature is close to 37C, and/or under strong light.
