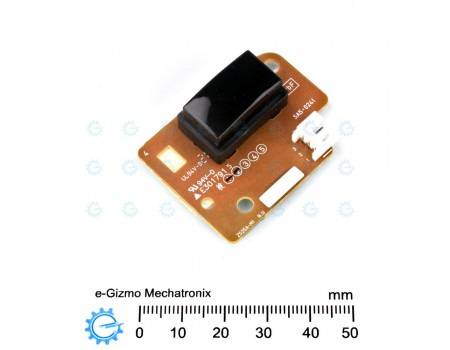

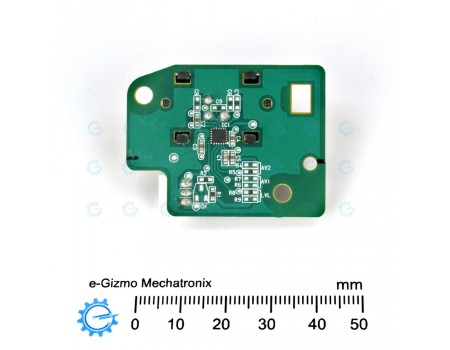

PIR motion sensor module for Brightly Lighted Areas Black Fresnel Lens

This product is a commercial quality single channel PIR motion sensor with black color Fresnel lens to make the sensor largely unaffected by bright light ambience.

Operation Voltage: 3.3V to 5VDC
Detection Range*: >4 meters
Detection Coverage: >120 degrees along the horizontal plane
Recommended Mounting: Horizontal

Sensitivity Adjustment: None
I/O Connector: 3 pin Wafer Type 2mm pitch
Output: Vcc Level Logic, compatible with both Arduino (5V) and Raspberry Pi (3.3V)

Important: PIR sensors require up to a minute of power ON setup time before they start to work.

*Detection distance depends on several environmental factors. Generally, distance is reduced when the ambient temperature is close to 37C, and/or under strong light.
