4-channel 360 degrees Motion and Direction sensing PIR sensor.

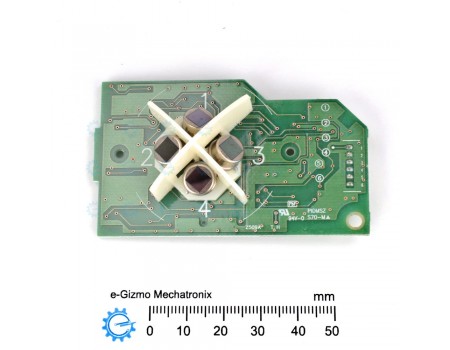

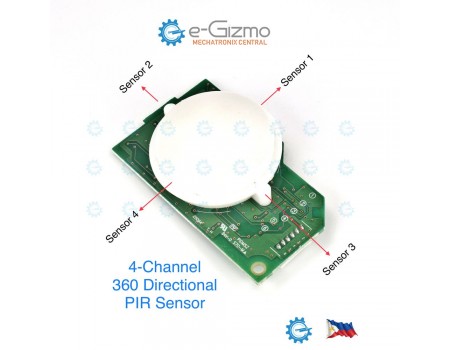

This module contains four independent PIR sensors covering each quadrant in a 360 degrees along the horizontal plane. This sensor offers several advantages over the cheaper and widely available single sensor versions. It can detect not just motion; the general location and movement direction can be resolved as well. This ability makes this useful for robotics applications and other projects that may require such feature.

The multiple sensor feature can also be used to reduce false alarm occurrence.

Voltage: 3.3V to 5VDC
Detection Range*: >5 meters
Detection Coverage: 360 degrees Hor.
Recommended Mounting: PCB horizontal
Number of Sensors/ Outputs: 4 (Vcc Level Logic)
Sensitivity Adjustment: None

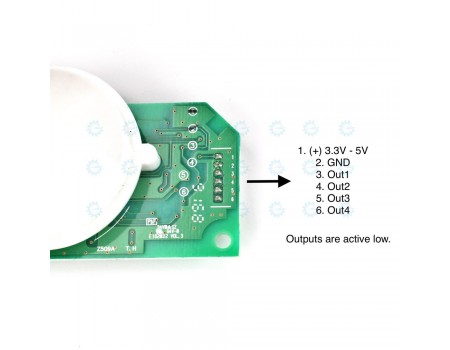

I/O Connector: 6 pin Wafer Type 2mm pitch

Important: PIR sensors require up to a minute of power ON setup time before they start to work.

Note: This is a brand-new module offered at a DISCOUNT PRICE due to a minor issue - the Fresnel lens may have slight scratches and dents. This issue is purely cosmetic and does not affect the performance of the module.
