ROBOT SENSING: Line Sensor- single

**TCRT5000** is an infrared reflectance sensor that is commonly used in line-following robots. It is a short-range sensor that can detect the color and distance of an object ³. The sensor consists of an IR transmitter and an IR receiver. The way it works is that the IR transmitter emits an IR signal, which is then reflected by an obstacle and detected by the IR receiver. The sensor is mounted at the bottom of the robot chassis and is used to follow a line.

Source: Conversation with Bing, 1/5/2024

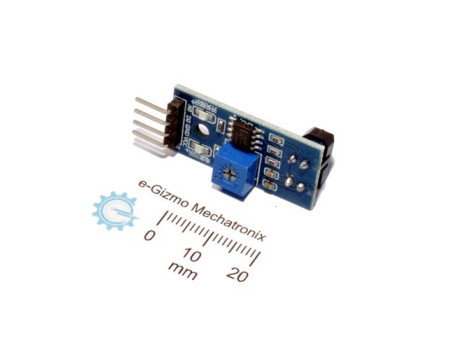

IR Line sensor based on TCRT5000
Operating Voltage: 3.3 to 5V
Analog and digital Output
Adjustable sensitivity

Wiring :

• Connection to gizDuino SE (Digital Output).

Code for Digital Output :

• Connection to gizDuino SE (Analog Output).

Code for Analog Output: 27-30 (white) 32-37 (black)
