MOTION DETECTION: XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor

MOTION DETECTION: XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor
Hot
MOTION DETECTION: XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor
0 reviews - Write a review
₱145.00
  • Stock: In Stock
  • Product Code: 580014446
  • Product ID: 580014446
Add to Cart
Buy Now
Add to Wish List Compare this Product

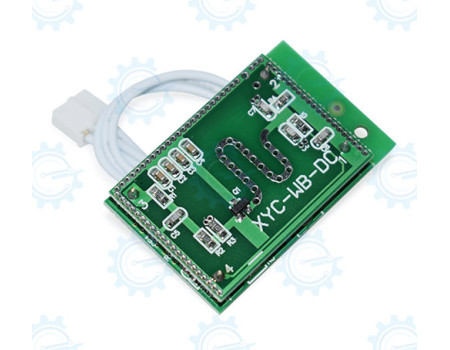

XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor can detect moving people and objects even through glass and thin walls.




Features :
Interface with gizDuino MCU.
Wide Range of motion detection
Works through walls but can be blocked by metal




Specifications :
Power Input 3.3-20VDC
Operating Frequency
 5.8Ghz
Detection Angle
 360 degrees
Detection Range
6~9 meters
Standby Current
 <3mA
Transmit Power
 <2mW
Operating Environment
 -20 to 80 degree Celsius




Downloads :
Technical Manual
 Download
Sample Arduino/gizDuino Sketch
 Download
