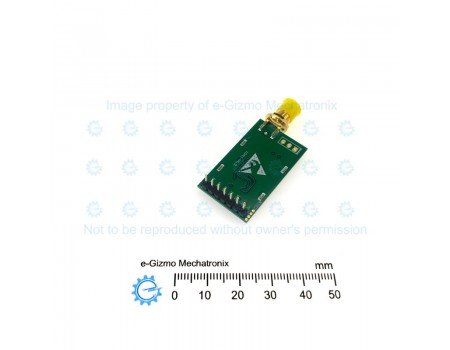

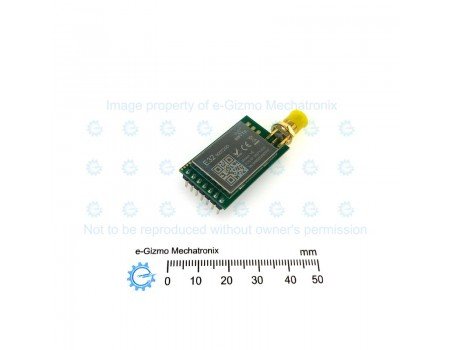

LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8

LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
LORA Wireless UART 868Mhz-915MHz 20dbm Transceiver 5km LOS Range E32-900T20D V8
0 reviews - Write a review
₱675.00
  • Stock: In Stock
  • Product Code: 211200025
  • Product ID: 211200025
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit wireless , wireless , rf , remote

The E32-900T20D is a wireless transceiver module operating in the 862-931MHz band. Its powerful 20dbm (100mW) transmitter and use of LORA Spread Spectrum Technology enable a line-of-sight LOS transmission up to more than 5km, while meeting the emission standards guidelines set by the FCC.

Power Supply: 2.3V to 5.5VDC
Logic Level: 3.3V
Transmit Current: 120mA
Receiving Current: 15mA
Tx Power: 20dbm max.
LOS Control Distance: 5.5km with suitable antenna
TX Length: 58 Bytes
Buffer Length: 512 Bytes
Communication Port: UART 3.3V TTL
Antenna Port: SMA-K

Download PDF Manual
