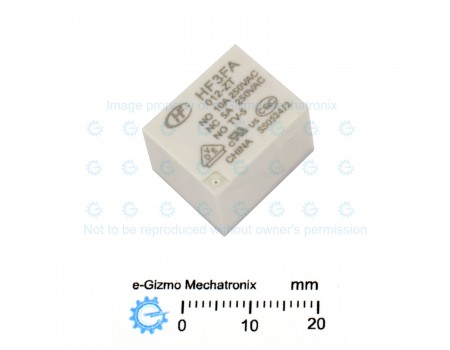

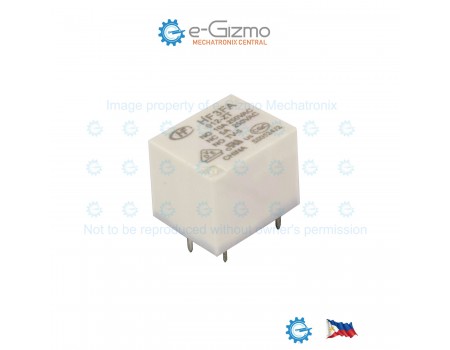

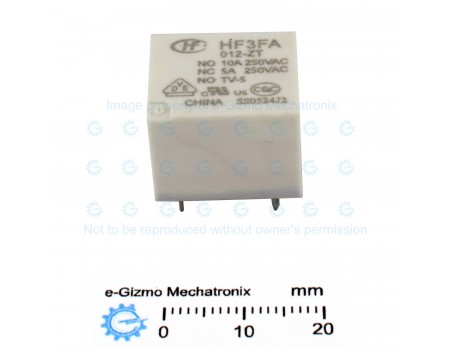

Hongfa HF3FA-012-ZT 12V 10A SPDT Relay UL,CUL,VDE,CQC

Name: Hongfa HF3FA-012-ZT 12V 10A SPDT Relay UL,CUL,VDE,CQC
Brand: Hongfa
Price: 40.00 PHP
Availability: InStock

-19%

Hongfa HF3FA-012-ZT 12V 10A SPDT Relay UL,CUL,VDE,CQC

0 reviews - Write a review

₱40.00

₱49.50

Stock: In Stock
Brand: Hongfa
Product Code: 130800005
Product ID: 130800005

Hongfa

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: relay , spdt , 5 pins

Description
Reviews

Original Hongfa high quality 12V 10A SPDT Relay
Contact rated at 10 million operations

Contact Data:
Maximum Current: 10A NO, 5A NC @250VAC 28VDC
Maximum Switching Power: 2770VA/280W
Contact Resistance: 0.1R max @ 1A
Contact Material: AgSnO2;AgNi;AgCdO
Mechanical Endurance: 10 million operations
Electrical Endurance: >100,000 operations at 10A load
TV-5 Rated

Coil Data:
Nominal Voltage: 12VDC
Pickup Voltage: 9VDC
Dropout Voltage: 1.2VDC
Coil Resistance: 400R
Coil Power: 360mW Approx

Safety Approval: UL, VDE, CQC
