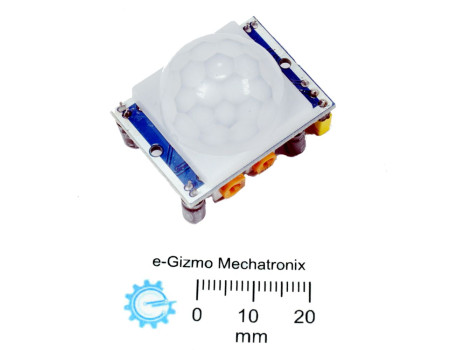

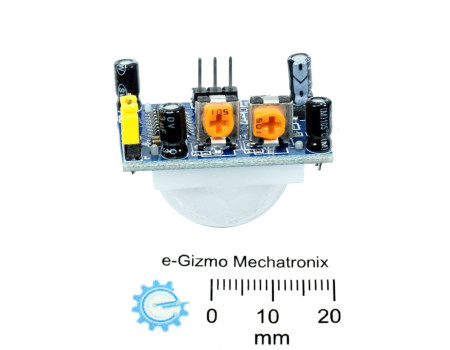

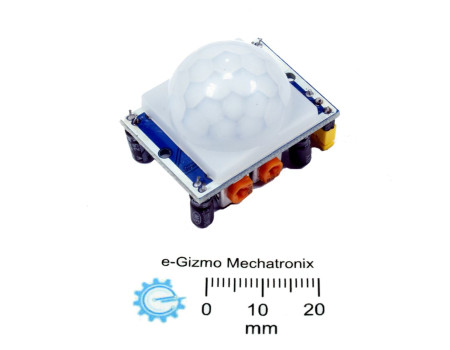

MOTION DETECTION: HC-SR501 Human Infrared Sensor Module

MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
-24%
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
MOTION DETECTION: HC-SR501 Human Infrared Sensor Module
0 reviews - Write a review
₱78.00
₱102.00
  • Stock: In Stock
  • Product Code: 580012514
  • Product ID: 580012514
Add to Cart
Buy Now
Add to Wish List Compare this Product

Detects motion by measuring abrupt temperature changes relative to its the surroundings, such as when a person cuts through its detection region.




Features :
Output goes high upon detection
User installable LDR to inhibit dtection function during daytime or bright light conditions.

Triggered in two ways: (jumper selectable)

- non-repeatable trigger: the output switches back to low a few seconds after detection

- repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will always remain high until the people left after the delay will be high level goes low (sensor module detects a time delay period will be automatically extended every human activity, and the starting point for the delay time to the last event of the time).
With induction blocking time (the default setting: 2.5s blocked time): sensor module after each sensor output (high into low), followed by a blockade set period of time, during this time period sensor does not accept any sensor signal. This feature can be achieved sensor output time “and” blocking time “interval between the work can be applied to interval detection products; This function can inhibit a variety of interference in the process of load switching. (This time can be set at zero seconds – a few tens of seconds)
Micropower consumption: static current <50 microamps, particularly suitable for battery-powered automatic control products
Wide operating voltage range: default voltage DC4.5V-20V
Output high signal: easy to achieve docking with the various types of circuit.




Specifications :
Power Input 5 - 20VDC
Power Consumption: 65mA
TTL output:
3.3V, 0V
Delay time: Adjustable (.3->5min)
Lock time:
0.2 sec
Trigger methods: L – disable repeat trigger, H enable repeat trigger
Sensing range:
less than 120 degree, within 7 meters
Temperature:
– 15 ~ +70
Dimension: 32*24 mm, distance between screw 28mm, M2, Lens dimension in diameter: 23mm




Downloads :
Technical Manual
 Download
Datasheet
 Download
Connection Diagram for Arduino/gizDuino
 Download
