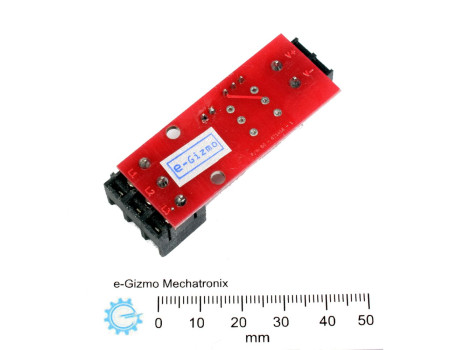

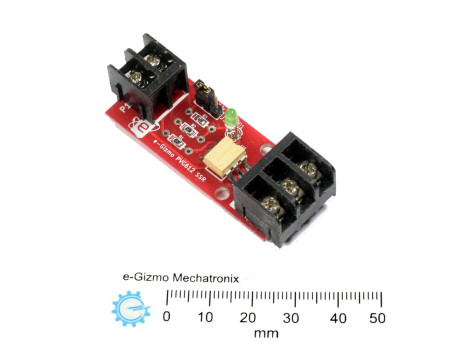

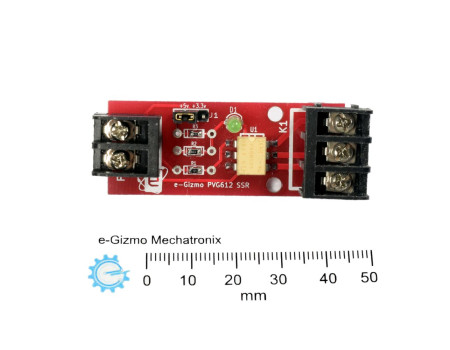

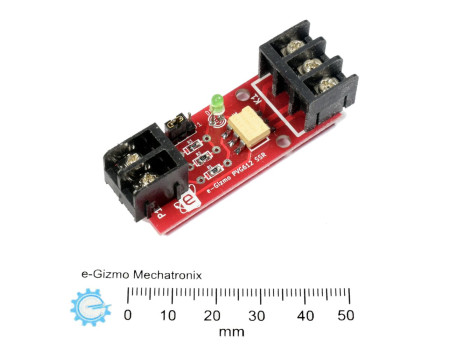

PVG612 60V AC DC SSR Module

PVG612 SSR Kit is a ""NORMALLY OPEN"" Solid-state Relay that can replace electromechanical relays in many applications. The compact PVG612 is particularly suited for iolated switching of high currents from 12 to 48 volts AC or DC power sources. The applications of this type of ssr are mainly devices like Programmable Logic Controllers, Computer & Peripherals, Audio Equipment, Power Supplies and power distribution, control of displays and indicators, and Industrial Automation.

Features :

Interface-able with gizDuino or Arduino MCU.

Bounce-Free operation

High Load current capacity

Linear AC/DC operation

4,000Vms I/O Isolation

Solid state reliability

Specifications :

Input Supply	3.3V or 5VDC
Input min current control	5.0mA
Operating Voltage range	0-60 (DC or AC peak)
Switch	Single Pole, Normally Open

Downloads :

Manual & Datasheet	Download
Schematic Diagram	Download
Connection Diagram for Arduino/gizDuino	Download
PCB Layout	Download
Download All
